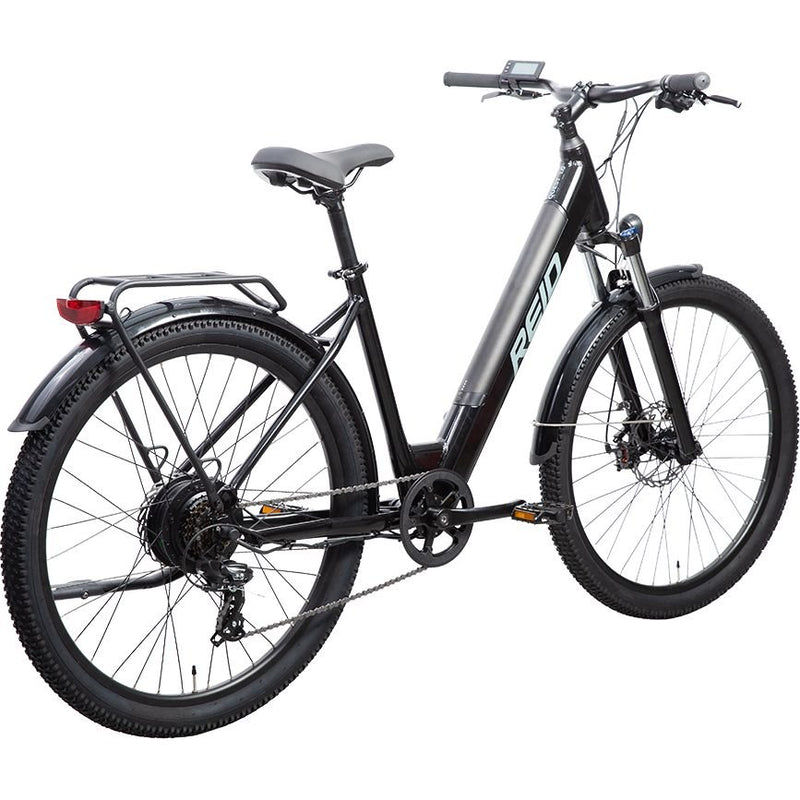

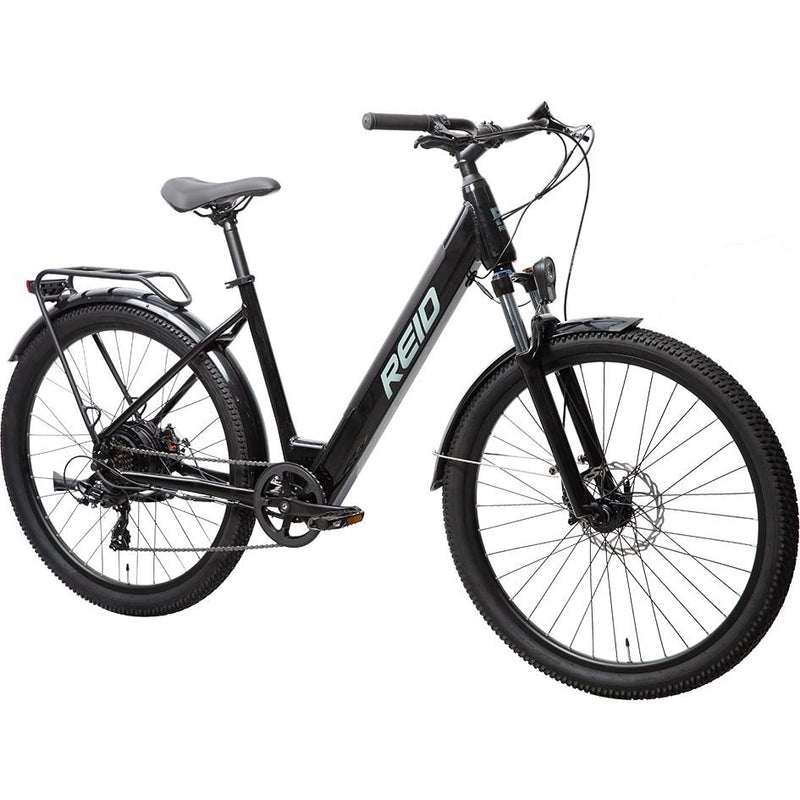

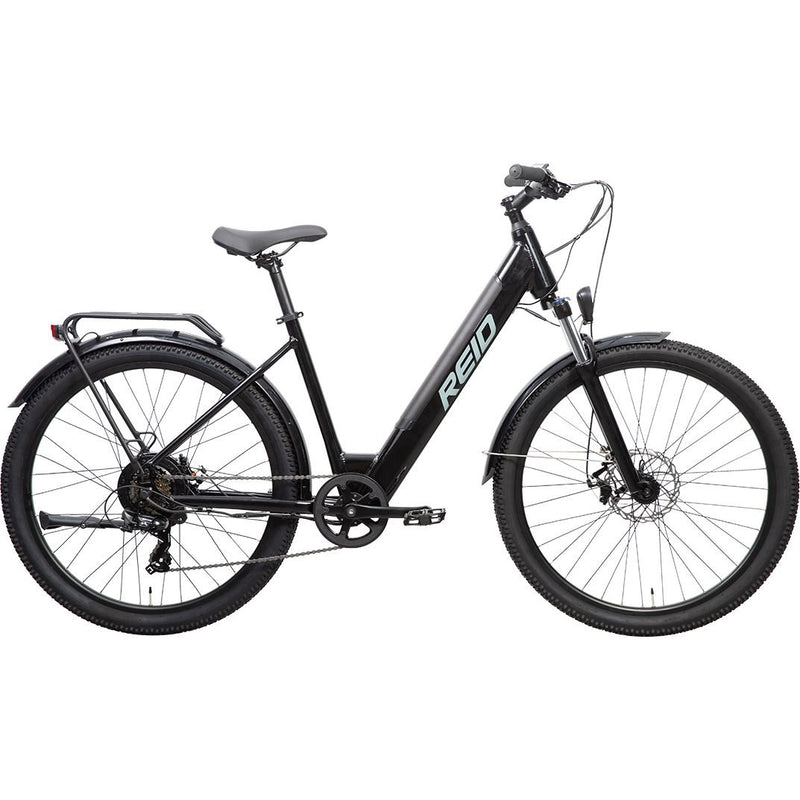

REID Quest 1.0 Electric City Bike

The all new Quest models are the ‘SUV’ of eBikes; comfortable, capable and tough. They can handle the worst that the urban environment can throw at them as well as light off road duties when needed.

Features

• The Quest 1.0 is our entry level durable urban commuter.
• The Quest 1.0 is the do it all SUV bike at an unbelievably accessible price. Commuting, trails, shopping, or heading to the beach…… all of them are made effortless. The super low step through frame design is made for accessibility.
• Fuss free with its integrated cables, headset, and 10.4ah battery, giving a clean look and increased reliability. The rear hub mounted Bafang 250w G020 motor produces a consistent 45nm of torque ensuring the wind is always in your sails.
• When riding the Quest 1.0 comfort comes as standard. High volume 2.35” tyres, 80mm front suspension by Zoom, Selle Royal comfort saddle, adjustable stem, ergonomic grips, and bar mounted digital display are all there to give you the best ride possible. Topping this all off is a set of full-length mudguards, rear mounted rack, and built-in lights.
• Could you want for anymore? We don’t think so….. The Quest 1.0 is available in 25km/h or 32km/hr speed models depending on geographic location.

Specifications

• Frame: Double butted 6061 Aluminium Alloy
• Fork: Zoom suspension 80mm
• Handlebars: W:700MM, R:25MM, BACKSWEEP:18D,BARBORE:31.8MM,
• Stem: A HEAD, EXT:70MM 17 DEGREE,H:41MM,BAR BORE:31.8MM,ED BOLT
• Pedals: Alloy platform with 9/16" steel axle
• Saddle: Selle Royal
• Seatpost: Alloy 30.6mm x 350mm
• Rider Weight Limit: 120kg
• Internal Cabling: Included
• Front Suspension Travel: 80mm
• Front Axle: QR
• Rear Axle: Bolted
• Mounts: Included-mudguard and lower pannier rack mounting points
• Headset: A HEAD,28.6MM,44*44MM,W/15MM RESIN BLACK CONE
• Bottom Bracket: Feimine FP-B902 Sealed Bearing
• Chain: KMC Z7
• Brakes: Tektro Hydraulic Disc Brakes
• Brake Lever: Yake Alloy 3-finger brake lever
• Freewheel: Shimano TZ500 7-Speed Freewheel (14-28t)
• Front Derailleur: #N/A
• Rear Derailleur: Shimano Tourney TY300 7-speed
• Shifters: L-TWOO 7-speed shifter
• Number Of Gears: 7
• Front Brakes: Tektro Hydraulic Disc Brakes 180mm rotor
• Rear Brakes: Tektro Hydraulic Disc Brakes 160mm rotor
• Crankset: 170mm alloy crank, 40t with chainguard
• Wheelset: 27.5"*36H*14G, double wall alloy , F/V
• Tyres: Kenda K1153 27.5" x 2.35"
• Front Hubs: M9*100*108MM*36H*13G, QR TYPE
• Rear Hubs: #N/A
• Wheel Size: 27.5"
• Grips: 130mm, closed end
• Kickstand: Included
• Bell: Included
• Reflectors: Included
• Mudguards: Included
• Chain Guard: Included
• Pannier Rack: Included
• Motor: Bafang 250W rear hub
• Display: KDS KD21C
• Battery: 360wh
• Range: 70km
• Charger: MDA257 36V/2A
• Power: 45Nm
• Top Speed: 25km/hr
• Integrated Lights: Included
